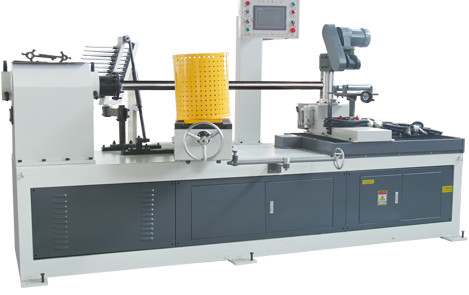

Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

Product Categories

AMC INDUSTRUAL DEVELOPMENT COMOANY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Four Head Type 15KW Paper Tube Cutting Machine 30 100mm Inner diameter TSJG100
Brand: AMC MACHINERY
Price: 1 USD

Brand Name : AMC MACHINERY

Model Number : TSJG-100

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 60 working days

Packaging Details : Plywood pallet

Voltage : 220V or 380V or 415V

Color : Customized

Thickness of paper tube : 2-15mm

Inner diameter of paper tube : 30-100mm

Paper layers : 3-25 layers

Wrapping head quantity : 4 Heads

Contact Now

Four Head Type Paper Tube Production Line

Model: TSJG-100

Characteristics:

Used for making paper tube with inner diameter of 30-100mm and thickness 1-8mm;
According to different paper tube, production speed could be 0-22m/min;
Independent driving two head same space and suitable for producing small diameter paper tube.
Paper tube cutting length is controlled by sensor, easy operation;
Main motor is 15KW;
Cross type paper stand, pneumatic glue supply system;
Bottom paper with both gluing tank and lubricating tank;
The cutting table motor is Gear type speed reducer motor, brand is Oute, made in Shanghai;
Pneumatic control cutting table up/down;
Cutter lifting/down speed is controlled by air valve;
Paper stand is right angle type;
Automatic bottom lubricating;

Specification:

TSJG-100 two head type paper tube production line
Inner diameter of paper tube	30-100mm
Thickness of paper tube	2-15mm
Paper layers	3-25 layers
Production speed	0-22 MPM
Main motor power	15KW
Voltage	380V/220V, 60Hz
Cutter	Circular blade
Length-control method	Sensor control
Wrapping head quantity	4 heads
Cutting blade driving motor power	0.75KW
Glue Unit	Multilayer gluing type
Paper Reel Stand	Right angle type
Operator	2-3 persons
Head dimension	￠215mm, height 260/320mm
Two head distance	840-1180mm
Dimension	20000x15000x1900mm
Weight	4200KG
